What Is Acceptable Mechanical Seal Leakage? Understanding Normal Seal Behavior, Leak Rates, and When to Replace Your Pump Seal

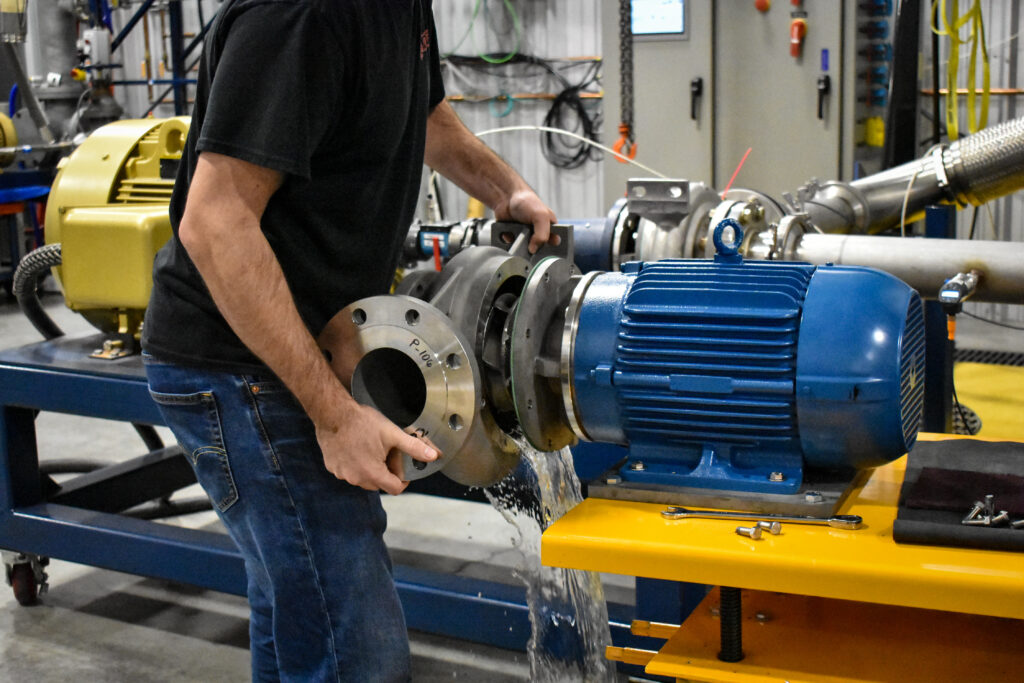

One of the most common service calls in the pump industry begins the same way: a customer reports a ‘defective pump’ that is leaking liquid. In the vast majority of cases, the pump itself is not defective — the mechanical seal is leaking. And in the vast majority of those cases, the seal failure is not a product quality issue. It is a misapplication, an operational error, or a fundamental misunderstanding of how mechanical seals are designed to work.

Understanding what normal mechanical seal leakage looks like, what an acceptable seal leak rate is for your specific application, and what actually causes mechanical seals to leak excessively is essential knowledge for any engineer, maintenance professional, or pump operator responsible for centrifugal pump reliability and uptime.

This article — based on original technical analysis by Robert Piazza, President and CEO of Price Pump Company — explains the engineering principles behind mechanical seal operation and leakage, defines acceptable leak rates for different pump duty classifications, identifies the most common root causes of excessive seal leakage, and provides a practical framework for deciding when to investigate a seal versus when to replace it.

Important scope note: This article covers elastomer bellows type mechanical seals used primarily in water and water/chemical services at operating pressures below 150 PSIg and flow rates below 1,000 GPM. This is the seal type most commonly used in industrial centrifugal pumps for chemical processing, water treatment, manufacturing, and semiconductor applications.

The Fundamental Truth About Mechanical Seal Design: Seals Are Designed to Leak

This statement surprises many pump operators and maintenance technicians — but it is the foundational engineering reality of mechanical seal technology. Mechanical seals used to isolate the pumped liquid in a rotodynamic pump from leaking to atmosphere are designed as controlled leakage devices, not zero-leakage devices. Understanding this distinction is essential to correctly diagnosing seal behavior in the field.

The operating principle of a mechanical seal is elegantly simple: a rotating (primary) seal face and a stationary (secondary) seal face are forced together by spring force and, when operating under pressure, by pump discharge pressure acting on the seal assembly. These two precision-lapped faces limit the amount of liquid that can pass between them to the microscopic quantities required to lubricate and cool the sealing interface — but they do not, and cannot, eliminate leakage entirely.

The flatness of precision-lapped seal faces is extraordinarily fine — as little as 2 helium light bands, which corresponds to approximately 23 microinches (0.58 micrometers). Despite this extreme precision, a microscopic cross-sectional view of even the finest mating seal face surfaces reveals a topography more reminiscent of a mountain range than a perfectly flat plane — with peaks and valleys at the micro scale that create the fluid pathways through which controlled leakage occurs.

The operating face separation distance — the gap between the two seal faces during operation — can range from 5 to 50 microinches or more, depending on the hydrodynamic effect of the specific liquid being sealed. It is through this microscopic gap that the controlled leakage occurs that provides both seal lubrication and cooling.

Critical insight: The thin fluid film that passes between the seal faces is not a design failure — it IS the design. That fluid film provides the lubrication and cooling that allows the seal to operate at thousands of RPM continuously without destructive face-to-face contact. Attempting to eliminate all leakage destroys the very film that keeps the seal functioning.

The Three Sealing Interfaces in a Mechanical Seal Assembly

A complete mechanical seal assembly actually incorporates three distinct sealing interfaces, each of which must function correctly for the seal to contain the pumped fluid:

The primary seal faces — the rotating and stationary precision-lapped faces that form the main dynamic sealing interface. This is where the controlled leakage film exists and where the majority of seal wear occurs during operation.
The elastomer bellows — a flexible elastomeric element (in bellows-type seals) that seals the rotating primary face to the pump shaft. The bellows also provides the axial flexibility that allows the rotating face to track the stationary face and compensate for minor shaft runout and thermal expansion.
The O-ring or U-cup seal — a static elastomeric seal that forms the secondary seal between the stationary seal face and the pump stuffing box or seal gland plate. This secondary seal prevents leakage from migrating along the outside diameter of the stationary face element.

Excessive leakage can originate from any of these three interfaces. Correctly diagnosing which leak path is active is the first step in any seal failure root cause analysis — and the repair approach differs depending on which interface has failed.

How Mechanical Seals Work: The Hydrodynamic Lubrication Principle

Mechanical seal operation involves a sophisticated interplay of hydrodynamics, thermal management, and precision surface contact. Understanding this operating mechanism is key to understanding both normal seal behavior and the specific conditions that cause premature seal failure.

The Startup Transition

As a pump starts, the primary (rotating) seal face begins to move. During the initial fraction of a second, the microscopic surface peaks of the rotating face contact the surface peaks of the stationary face — creating brief, transient metal-to-metal or ceramic-to-carbon contact. As shaft speed increases, the hydrodynamic effect of the liquid being sealed builds the lubricating fluid film between the faces that holds them apart. This transition from static contact to full hydrodynamic operation is analogous to a tire transitioning from rolling contact to hydroplaning on a wet road surface.

This brief startup transition period — lasting less than a second under normal conditions — represents the moment of highest face wear in the seal’s operating cycle. Every start event imposes this transient wear on the seal faces. It is precisely this mechanism that explains why frequent start/stop cycling dramatically reduces mechanical seal service life.

Steady-State Operation and Face Wear-In

During steady-state operation, the seal faces are separated by the hydrodynamic fluid film and operate with minimal wear. Over time, the faces gradually ‘wear in’ — the microscopic surface peaks are slowly smoothed by the controlled friction of the sealing interface, progressively improving the surface fit between the rotating and stationary faces. This wear-in process actually improves seal performance over time for new seals with hard face material combinations such as silicon carbide.

The wear-in process changes the seal face surface finish to compensate for seal face pressure distribution, face flatness tolerances, and minor thermal distortions — reaching a stable, optimized surface condition that can persist for years of continuous operation in a well-applied seal.

Why Stopping and Restarting Damages Seals

Each time a pump stops, the hydrodynamic fluid film between the seal faces collapses — the faces return to static contact. When the pump restarts, the transient wear event repeats. For pumps that start and stop many times per day — level-controlled pumping applications, batch process pumps, and demand-responsive systems — the cumulative effect of repeated startup wear events can reduce seal service life to a fraction of what continuous-operation seals achieve. This is one of the most important and most frequently overlooked factors in centrifugal pump seal reliability.

Root Causes of Excessive Mechanical Seal Leakage

Better than 90% of warranty claims for alleged ‘defective pumps’ that are leaking liquid can be traced directly to the mechanical seal. And the vast majority of those seal failures are not product quality issues — they are the result of misapplication, operational conditions that exceed the seal’s design parameters, or improper material selection. Understanding the actual root causes of seal failure is essential for developing a systematic approach to seal reliability improvement.

The most significant factors that adversely affect mechanical seal service life and cause excessive leakage include:

Abrasive Contamination of the Pumped Fluid

Abrasive particles in the pumped fluid are the most common cause of premature mechanical seal failure. Abrasives reach the seal faces through two paths: particles can chip away at the outside diameter of the seal face material (particularly carbon and softer ceramic materials), and particles can become trapped between the precision-lapped sealing surfaces and physically score the faces. Even microscopic scoring damage on seal faces creates leakage channels that bypass the hydrodynamic sealing mechanism and produce leakage rates far beyond normal.

Abrasives can also attack the elastomeric secondary seals — the bellows and O-rings that seal the shaft and stuffing box interfaces. Elastomer damage from abrasive attack creates leak paths around the primary seal faces that can be misdiagnosed as primary seal face failure.

Elastomer Damage — Chemical Incompatibility and Physical Damage

The elastomeric components of a mechanical seal — the bellows, drive pins, O-rings, and secondary seal elements — must be chemically compatible with the pumped fluid across the full range of operating temperatures. Chemical incompatibility causes elastomer swelling, softening, cracking, or dissolution that destroys the secondary sealing function. Common sources of elastomer damage include:

Chemical attack from process fluid incompatible with the elastomer material (e.g., Buna-N exposed to aromatic hydrocarbons or ketones)
Thermal degradation from sustained operation above the elastomer’s rated temperature limit
Physical damage during seal installation — torn, pinched, or cut elastomers from improper assembly techniques
UV and ozone degradation in outdoor or high-UV environments over extended storage or service life

Cavitation at the Seal Faces

Cavitation of the pumped liquid across the seal faces occurs when the fluid pressure at the seal face interface drops below the fluid’s vapor pressure, causing the formation and violent collapse of vapor bubbles at the sealing surfaces. Cavitation at the seal faces produces aggressive erosive attack on both the primary and stationary face materials, creating pitting damage that destroys face flatness and dramatically increases leakage rates. Preventing cavitation at the seal requires maintaining adequate Net Positive Suction Head (NPSH) and seal chamber pressure throughout all operating conditions.

Dual Phasing — Liquid to Vapor Transition

Dual phasing occurs when the pumped medium transitions between liquid and vapor states at the seal face. This condition — distinct from cavitation — occurs in services where the fluid vapor pressure is close to the seal chamber pressure, in systems with entrained gas, or during startup and shutdown transitions when process conditions are unstable. When vapor reaches the seal faces, the lubricating fluid film collapses, the faces make direct contact, and rapid dry-running wear ensues. Even brief episodes of dual phasing can cause severe seal face damage.

Shaft Eccentricity and Runout

Excessive eccentricity — the displacement of the pump shaft centerline from its theoretical center of rotation — causes the rotating seal face to describe an orbital path around the stationary face rather than rotating concentrically within it. This dynamic misalignment creates cyclical loading on the seal faces and elastomeric components that accelerates wear, fatigues the elastomer bellows, and can cause the seal to momentarily open — creating pulsating leakage that is characteristic of shaft eccentricity failure. Causes of excessive shaft eccentricity include worn motor bearings, bent shafts, impeller imbalance, and insufficient shaft stiffness.

Non-Parallel Seal Faces

Seal faces must be precisely parallel to each other to achieve uniform face loading across the full sealing interface. Non-parallel faces create a wedge-shaped gap that is wider on one side than the other — producing uneven face loading, a preferred leakage path on the low-load side, and accelerated wear on the high-load side. Non-parallel faces result from improper seal installation, a distorted seal gland plate, or a stuffing box face that is not perpendicular to the shaft centerline within tolerance.

Incorrect Seal Face Loading

Mechanical seals are designed to operate at a specific face loading — the force per unit area pressing the rotating and stationary faces together. Too little face loading and the faces cannot maintain adequate contact, allowing excessive leakage. Too much face loading and the lubricating fluid film is squeezed out, causing the faces to run in direct contact with insufficient lubrication — producing rapid wear, heat generation, and early failure. The correct spring selection and installation per the seal manufacturer’s specifications is essential to achieving the correct face loading for the application.

Wrong Seal Material or Type for the Application

Mechanical seals are available in a wide range of face material combinations, elastomer compounds, and design configurations to accommodate the diversity of pumped fluids encountered in industrial service. Selecting the wrong seal type or face material combination for a specific application is a common and entirely preventable source of premature seal failure. Key material selection considerations include chemical compatibility of face materials and elastomers with the pumped fluid, temperature rating, abrasion resistance for services with particulate contamination, and pressure rating.

What Is Normal Seal Leakage? Defining Acceptable Leak Rates by Application

Having established that mechanical seals are designed to leak in controlled quantities, the practical question becomes: how much leakage is acceptable for a given application? The answer is application-dependent — there is no universal leakage rate that defines ‘normal’ across all pump services. The acceptable leakage rate is determined by the nature of the pumped fluid, the regulatory environment, and the operational sensitivity of the system.

As a general framework, a tap water application in an industrial environment can typically tolerate a higher visible leakage rate than deionized water service in a semiconductor fabrication facility or a sterile pharmaceutical application. Some chemicals — due to EPA, AQMD, or OSHA fugitive emissions regulations — have extremely low acceptable leakage rates that may require sealless (zero-leakage) pump technology rather than conventional mechanical seals.

Low Duty vs. High Duty Pump Classification

Acceptable seal leakage rates are differentiated between low duty and high duty pump applications. Low duty pumps are generally defined as those operating within the following parameters:

Shaft speed at or below 3,600 RPM
Operating pressure at or below 319 psi (22 bar)
Fluid temperature range from -40°F (-40°C) to +300°F (180°C)
Shaft diameter at or below 3 inches

For low duty pump applications, normal seal leakage is typically measured in drops per hour — a very small quantity that may not even be visible under normal conditions due to evaporation. For high duty applications (operating above any of the low duty thresholds), acceptable leakage is typically expressed in drops per minute — a somewhat higher rate commensurate with the more severe operating conditions.

Application Type	Acceptable Leakage Rate	Notes
Low duty water service (≤ 3,600 RPM, ≤ 319 psi)	Drops per hour	May not be visible due to evaporation at seal exit
High duty industrial service (exceeds low duty limits)	Drops per minute	Higher rate acceptable given more severe conditions
Industrial tap water / non-regulated fluid	Visible minor weepage acceptable	Practical tolerance; confirm no safety/environmental impact
Deionized water / semiconductor service	Extremely low — near-zero visible leakage	Product purity and equipment corrosion concerns dominate
EPA/AQMD regulated chemicals (VOCs, HAPs)	Per applicable regulation — typically near-zero	May require sealless (magnetic drive) pump technology
Pharmaceutical / food-grade service	Per product purity requirements and regulatory standards	Consult applicable FDA and GMP guidelines

Practical Field Guidance: Measuring and Evaluating Seal Leakage

When Leakage Is Not Visible — Don’t Assume Zero Leakage

The absence of visible liquid at the seal does not confirm that the seal is leaking within acceptable limits — or that it is not leaking at all. In many low duty pump applications, the normal seal leakage rate is measured in drops per hour, and the drops evaporate immediately upon exiting the seal to atmosphere, leaving no visible liquid trail. In services with volatile fluids or elevated fluid temperature, this evaporative effect is even more pronounced.

If there is any uncertainty about whether leakage is occurring or its rate, placing an appropriately colored collection paper or absorbent pad in the area below the seal can reveal leakage that would otherwise evaporate invisibly. The practical field test is straightforward: if the liquid puddles and persists before evaporating, the leakage rate is excessive and the seal condition requires evaluation.

Startup Leakage — When to Wait Before Replacing

One of the most common and most costly errors in mechanical seal management is replacing a seal that is performing normally. Seals — particularly new seals with hard face material combinations such as silicon carbide versus carbon — frequently exhibit elevated leakage rates immediately after installation and during the initial wear-in period. This startup leakage is a normal part of the seal break-in process as the faces polish and conform to each other.

Additionally, seals will sometimes leak at initial startup due to contaminants — machining debris, assembly lubricants, or particulates from the first process fill — collecting on or between the seal faces. These contaminants will typically pass through the faces after a period of operation or several start and stop cycles. This self-clearing behavior should be considered and allowed to proceed before concluding that a seal replacement is required.

The appropriate response to startup seal leakage is to operate the pump for a period of time and monitor leakage rate trends — a leakage rate that is decreasing over time indicates normal break-in behavior. A leakage rate that is stable or increasing indicates a seal problem that warrants further investigation.

Diagnosing Elastomer Leak Paths

It is also possible for leakage to occur not through the primary seal faces but past the elastomers sealing the shaft or stuffing box. Elastomer leak paths are often distinguishable from primary face leakage by their location: leakage from the shaft bellows typically originates at the shaft, while leakage from the stuffing box O-ring or U-cup typically originates at the outside diameter of the stationary seal element where it interfaces with the gland plate or stuffing box bore.

If the leak path is confirmed to be through the elastomeric secondary seals rather than the primary faces, the elastomer must be replaced. Elastomer failures are typically the result of chemical incompatibility between the seal elastomer material and the pumped fluid, thermal degradation from operation above the elastomer’s rated temperature, or physical damage during installation.

The Definitive Rule: Persistent Visible Leakage Requires Seal Replacement

While normal seal leakage may be invisible, intermittent, or self-clearing during break-in, the operating principle for seal condition management is clear: if leakage is persistently visible — if liquid is consistently present at the seal area during steady-state operation — the seal should be replaced. Persistent visible leakage indicates that the seal is operating beyond its controlled leakage design parameters and is progressing toward accelerated failure.

Seal Damage Types: What Failure Analysis Reveals

When a mechanical seal is removed for replacement, visual inspection of the seal faces provides valuable root cause information that can prevent recurrence. The most commonly observed seal face damage types and their root causes include:

Seal Face Damage Type	Most Likely Root Cause
Contaminate deposits on face surface	Particulate or chemical contamination of pumped fluid reaching the seal faces; inadequate fluid filtration
Fractured / cracked seal face	Thermal shock from dry running, rapid temperature change, or improper startup; hydraulic pressure overload; physical impact damage during installation
Scored seal face (radial scratches)	Abrasive particles trapped between seal faces; hard particle contamination in pumped fluid
Chipped outer diameter of seal face	Abrasive particle impingement on seal face OD; mechanical contact damage
Blistered or distorted elastomer bellows	Chemical incompatibility between elastomer and process fluid; thermal overload above elastomer temperature rating
Uniform wear across full face width	Normal wear-in (if minor) or excessive face loading (if severe)
Asymmetric wear (more on one side)	Non-parallel face installation; shaft misalignment; stuffing box face perpendicularity error
Bright heat marks / blue discoloration on carbon face	Dry running or thermal overload; insufficient cooling flush to the seal chamber
Material transfer / film buildup on face	Incompatible material combination; inadequate lubrication; fluid with adhesive properties

When Sealless Pump Technology Is the Right Answer

For applications where even the controlled leakage of a properly functioning mechanical seal is unacceptable — due to the toxicity of the process fluid, regulatory zero-leakage requirements, product purity demands, or the environmental sensitivity of the pumped chemical — a zero-leakage sealless pump may be required. Magnetic drive pumps (mag drive pumps) eliminate the mechanical shaft seal entirely, using magnetic coupling through a hermetically sealed containment shell to transmit torque to the impeller without any shaft penetration of the pump casing.

Sealless magnetic drive pump technology is the preferred solution for:

Highly toxic, carcinogenic, or acutely hazardous fluids where any leakage to atmosphere creates unacceptable safety risk
Environmentally regulated substances subject to EPA Method 21 LDAR requirements, NESHAP standards, or state-level air quality regulations
High-purity chemical applications in semiconductor fabrication, pharmaceutical manufacturing, and specialty chemical production where product contamination from seal leakage is unacceptable
Flammable and combustible fluids where seal leakage creates fire or explosion risk
Applications with recurring mechanical seal failures due to fluid characteristics — crystallizing fluids, polymerizing chemicals, or abrasive slurries — where seal support plans have not resolved the underlying failure mechanism

Summary: A Practical Decision Framework for Seal Leakage Evaluation

Observation	Recommended Action
No visible leakage — new seal, first startup	Normal — allow break-in period; monitor for trend
Minor leakage at startup, decreasing over time	Normal break-in behavior — continue operation and monitor
Minor startup leakage, self-clearing after several starts	Likely contaminate on faces — normal; allow to self-clear before replacing
Persistent visible leakage during steady-state operation	Seal replacement required — investigate root cause before reinstalling
Leakage originates at shaft (not face area)	Elastomer bellows failure — replace seal; check chemical and thermal compatibility
Leakage at OD of stationary face / stuffing box	Secondary seal (O-ring/U-cup) failure — check for chemical damage or installation defect
Fractured or cracked seal face on removal	Thermal shock or dry running event — investigate root cause; consider flush plan upgrade
Scored or abraded seal faces	Abrasive contamination — add suction strainer; improve fluid filtration
Recurring seal failures at same location	Misapplication, wrong seal material, or systemic operating condition issue — consult seal and pump manufacturer

Conclusion: Informed Seal Management Reduces Costs and Improves Pump Uptime

Mechanical seal leakage is not a binary pass/fail condition — it is a spectrum that ranges from the normal controlled leakage that is fundamental to how seals work, through acceptable field leakage rates that vary by application and regulatory environment, to excessive leakage that indicates a seal condition requiring attention. Understanding where on this spectrum a given seal is operating is the foundation of intelligent, cost-effective seal management.

The key principles to carry from this discussion are: seals are designed to leak in controlled quantities; the absence of visible leakage does not confirm that leakage is not occurring; startup leakage during break-in is often normal; persistent visible leakage during steady-state operation requires seal replacement; and the root cause of every seal failure should be understood before the replacement seal is installed — or the failure will recur.

When in doubt about seal application, leakage evaluation, material selection, or whether your application requires sealless pump technology, consult with both the seal manufacturer and the pump manufacturer. The engineering expertise to answer these questions accurately exists at both organizations — and the cost of a consultation is always far less than the cost of recurring seal failures.

Price Pump Company manufactures centrifugal pumps and sealless magnetic drive pumps for water, chemical, industrial, and semiconductor applications. Our engineering team has decades of experience in mechanical seal application, failure analysis, and pump reliability optimization.

Questions about your pump’s seal leakage, recurring seal failures, or whether your application requires a sealless magnetic drive pump? Contact Price Pump at sales@pricepump.com or visit www.pricepump.com — our application engineers are ready to help you find the right solution.

Author / Original Paper Credit: Robert Piazza, President & CEO, Price Pump Company

Acceptable Seal Leakage
